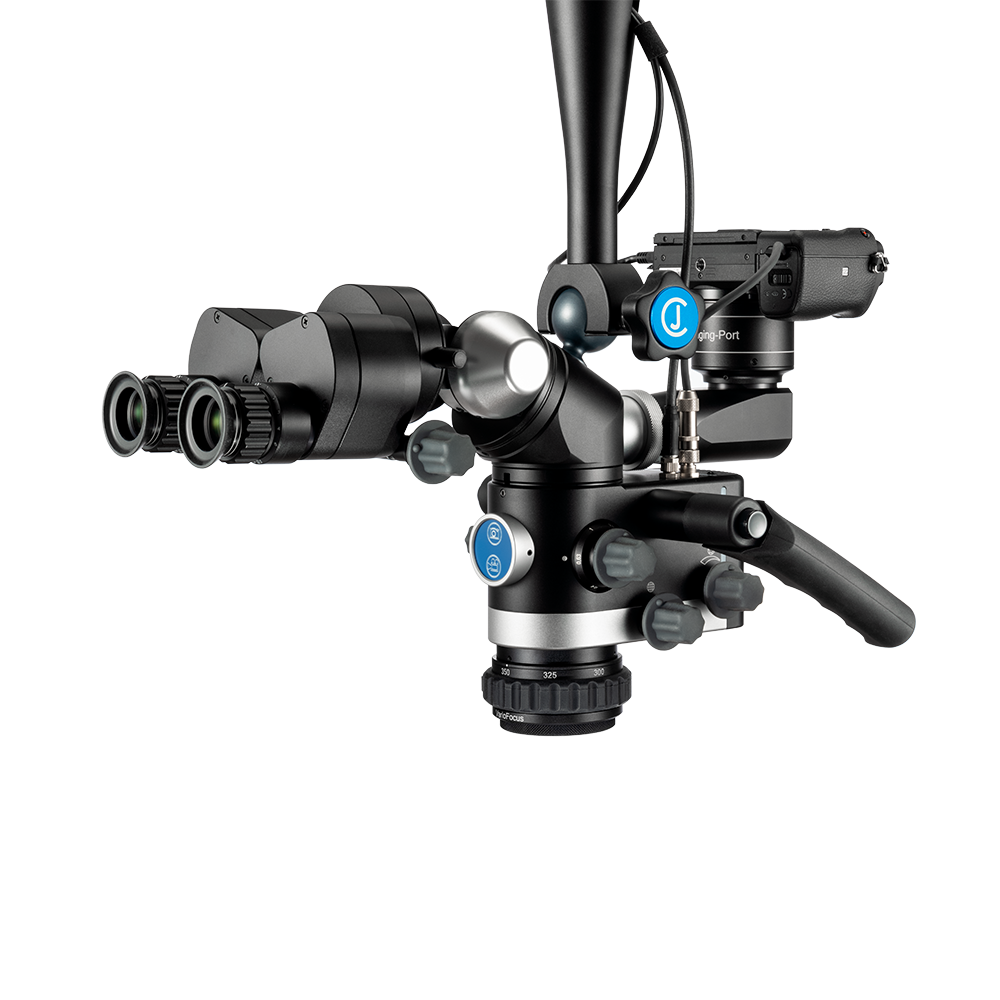

CJ-Optik Flexion Advanced Sensor Unit Microscope by Víttrea
The system combines advanced optics and clinical functionality with 5 magnification levels (0.4–2.5) using apochromatic lenses, selectable filters (orange or green), and VarioFocus² and VarioFocus³ focusing systems with Plan-APO optics and lens protection, including an anti-splash version. It incorporates ergonomic features such as 360° rotating handles and WF 12.5x wide-angle eyepieces (optional with reticle). The illumination system is based on fanless 5,500 K LED technology with up to 100,000 lux adjustable intensity and a lifespan of 65,000 hours. In addition, it offers extensive documentation capabilities with imaging and video systems (4K, HD, and smartphone), a 50:50 beam splitter, photo/video control via SensorUnit, and compatibility with dedicated software and apps such as MicVision and MicroVis.
The Advanced Sensor Unit microscopes are available in various options and configurations. Our product specialists will help you choose the one that best suits your needs. Click the “Request a Quote” button and fill in the form with your details so that our team can contact you as soon as possible and prepare a personalised quotation.
OPTICS
DOCUMENTATION
LIGHTING
ERGONOMICS
DESIGN
Flexion Advanced Sensor Unit Microscope by CJ-Optik
The Flexion Advanced Sensor Unit impresses with its excellent optics and a wide range of functions. Well-thought-out ergonomics ensure an upright treatment position and a relaxed posture.
To satisfy modern documentation needs, there are several image connections available for full-frame cameras, APS-C FullFrame, and smartphones.
In addition to the features of its counterpart, the Advanced Sensor Unit comes with a remote control unit that initiates photo or video recordings with a simple hand gesture, providing greater convenience during treatment.
Magnification system
5-levels magnification with semi-apochromatic lens system / 0.4 - 2.5
Documentation
- *Sensor Unit controls for video and image
- Beam splitter 50:50
- 4K-Imaging-Port / FullFrame *
- HD-Imaging-Port / APS-C *
- Phone-Imaging-Port / Smartphones *
- MicVision App (iOS & Android) *
- MicroVis Software *
Filters
Can choose between green or yellow filter
Focus system
- VarioFocus2 200 - 350 mm / Plan-APO / protective glass
- VarioFocus3 210 - 470 mm / Plan-APO / protective glass
- VarioFocus with splash protection for the objective lens
Movement
MonoGlobe, Axial Movement 355°
Handle
Ergonomic handles with 360° rotation
The CJ-Optik Flexion microscopes are synonymous with maximum flexibility and ergonomics.
